TDI Female Injector harness connector (1996-2002.5)

$7.38

7 in stock

SKU: 037906240 Categories: VE DLC Nozzles (TDI), VE DLC Race Nozzles (TDI), VE Injection Pumps, VE Nozzle Holder, VE Nozzle Holders and Parts
  • Description
  • Additional information
  • Reviews (0)

Description

VW Part#: 037906240

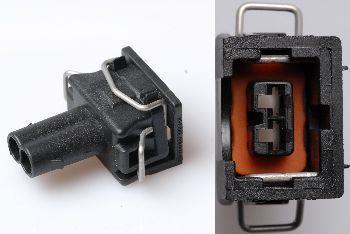

This fits all 1996 thru 2002.5 TDI vehicle harness connectors using the “Square” brown plug style on the #3 injector harness.

Below, is the conversion from a 1996-2002.5 to a new “D” shaped 2003 style plug.

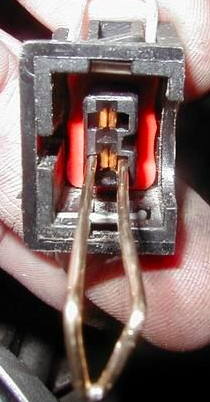

Use a thinner style paper clip to compress the harness plug retention pins.

Screen Shot 2014-07-08 at 8.53.57 PM

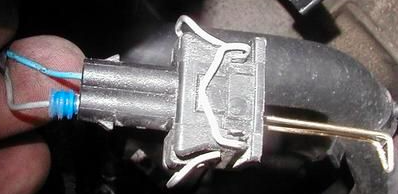

Gently slide the wire and seal from the housing, typically the wire will push out with the paperclip.

Screen Shot 2014-07-08 at 8.54.10 PM



Slide the Purple locking tab fully to the left to allow insertion of the two harness connectors

Screen Shot 2014-07-08 at 8.54.30 PM



Insert the two wires till they click, and then slide the locking frame back to the center locking the wires in place. The circuit is a simple DC (resistance type circuit) so polarity (wire position) is not critical for install.

Screen Shot 2014-07-08 at 8.54.39 PM
